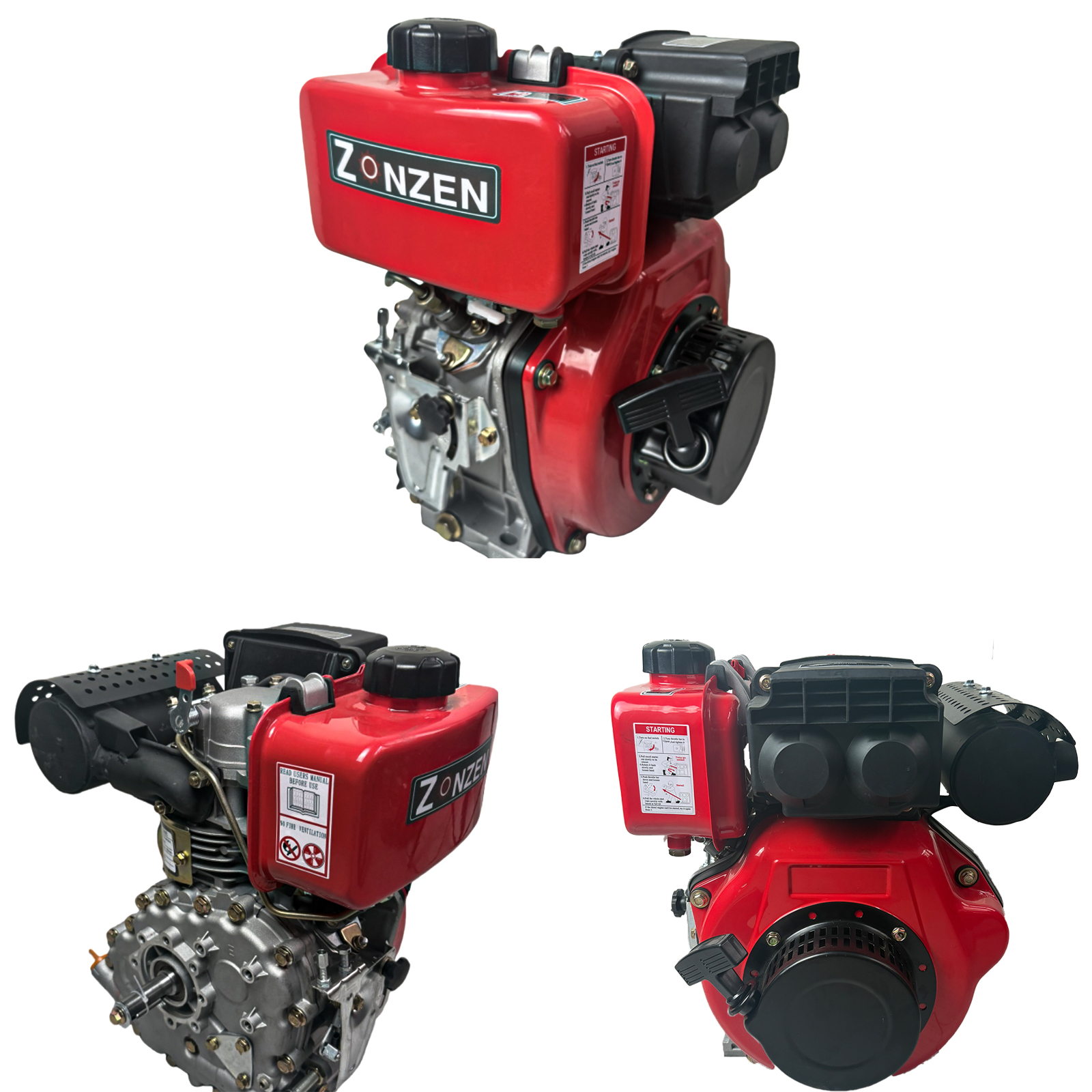

Zonzen 4-Stroke 170CF Air Cooled 2.5KW Diesel Engine
【SELF-INJECTION DIESEL SYSTEM】4 Stroke 208CC Diesel Engine, equipped with a self-injection diesel system, good atomization, low oil consumption, more punctual diesel injection, and long service life. Compact structure, small size, and light weight.
【MAIN PARAMETERS】Shell material: Aluminum, Displacement: 208CC, Speed: 3000 RPM, Maximum output: 2.8KW, Number of cylinders: Single Cylinder, Engine cooling method: Air Cooling, Starting system: Recoil/Electric, Ignition method: Compression Ignition, Diesel tank capacity: 3L
【GOOD COOLING PERFORMANCE】Enhanced thickening alloy box, fast heat dissipation, low oil temperature, light weight. Through advanced software analysis and optimized design, the reliability of the diesel engine in terms of structure and cooling is ensured
【SUPERIOR DIESEL SYSTEM】Large-capacity diesel tank, enhanced thickening, large diesel tank volume, special painting process, seam welding, and oil leakage prevention. Optimize the diesel system, intake, and exhaust systems to save energy and diesel
【WIDELY APPLICATION】Used in small agricultural machinery, such as micro-tiller, pastoral management machine, irrigation and drainage machine, generator set, small transport vehicle, small walking tractor, and other fields.
Description
| Model: | 170CF |
| Type: | Inclined Horizontal, Swirl Chamber Type |
| Bore*Stroke (mm): | 70×54 |
| Displacement (cc): | 208 |
| Compression ratio: | 21:01 |
| Rated speed(rpm): | 3000 |
| Rated power (kW): | 2.5 |
| Max. power (kW): | 2.8 |
| Fuel tank capacity (L): | 3 |
| Fuel consumption (L/hr.): | ≤1.01 |
| Lube oil capacity(L): | 0.7 |
| Starting Fashion: | Recoil/Electric |
| Output Shaft: | Crankshaft |
| Fuel trademark: | O#(summer),-10#(winter) diesel |
| Oil trademark: | CD grade or SAE10W-30 15W-40 |
| Net Weight(kG): | 20/21 |
| Products Dimension LxWxH (mm): | 395X305X361 |
